5 KV OnGrid Roof Top Solar System
Rs. 295,000.00

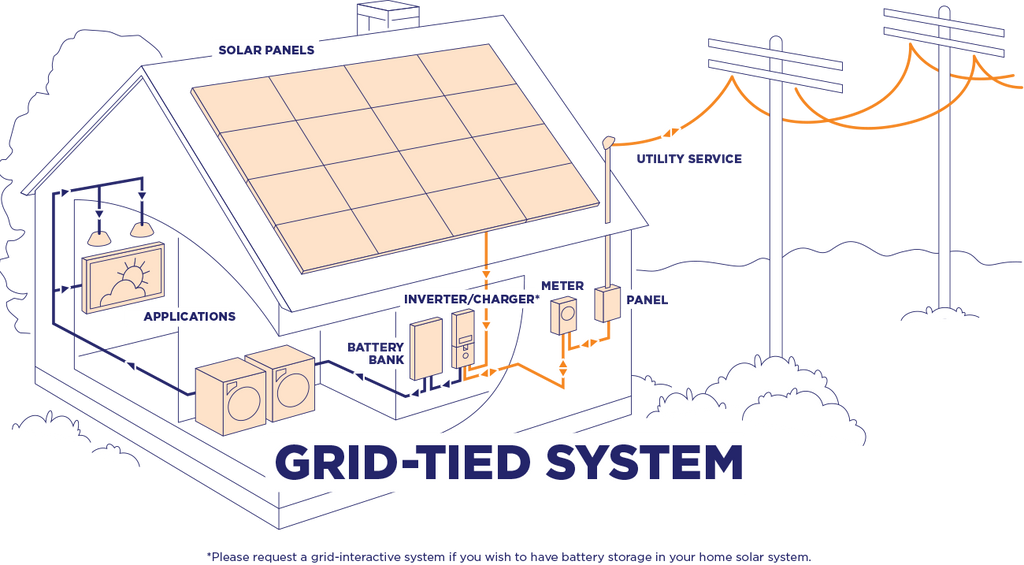

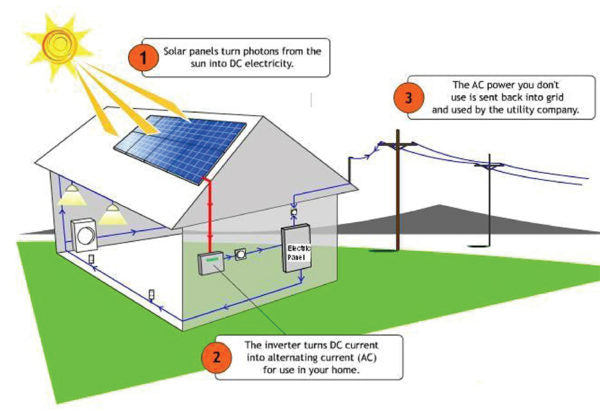

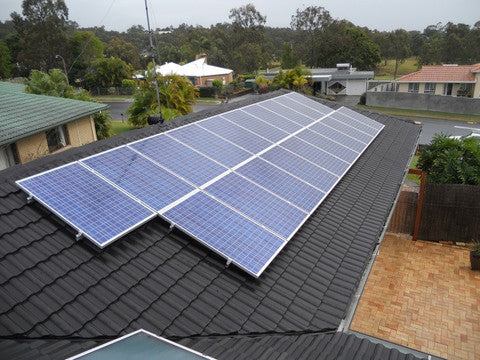

A 5 kW rooftop solar system is a compact and efficient solar power solution commonly installed on residential buildings and small commercial premises. It consists of multiple solar panels mounted on the rooftop that capture sunlight and convert it into electricity through a solar inverter, making it suitable for everyday household use. The system typically generates around 18–25 units of electricity per day, depending on sunlight availability and location, and requires about 400–500 square feet of shadow-free roof area. A 5 kW rooftop solar system significantly reduces electricity bills, supports clean and renewable energy usage, and can be connected to the utility grid through net metering to export excess power, ensuring reliable and cost-effective energy for long-term use.
- SKU:5KW_BOS_DCR_TOPCON
- Availability:Product Will Dispatch In 4 Weeks
- Weight:300.00 KGS
- Shipping:Free Shipping
- T&C:Non Returnable
- Note:Structure & Installation Charges Not Included
- Type:Ready To Install Solar Kit
- Type:Ready To Install Kit
- Scheme:PM SURYA GHAR MUFT BIJALI YOJANA
- Subsidy:Eligible for Government Subsidies
| Sr. No. | Component | Specification | Qty. |
| 1 | PV Module | BiN-08-560/565/570/575/580 (DCR) | 9 |
| 2 | Inverter (On-grid) | WS On Grid 1 phase Inverter 5 KVA-Gen4 5kVA | 1 |
| 3 | DCDB | DCDB 8-12 KW (2 in 2 out) With SPD 1000V (Finder) & MCB 32 A | 1 |
| 4 | ACDB | ACDB 1-6 KW with Indicator 1 Phase SPD 1+1 (Finder), 25/32A 2P AC MCB (Schneider) | 1 |
| 5 | DC Cable | 1C, 4 Sqmm Cu. XLPO DC Cable - Red | 60 |
| 6 | DC Cable | 1C, 4 Sqmm Cu. XLPO DC Cable - Black | 60 |
| 7 | AC Cables (From Inverter to ACDB) | 4C, Cu. Flexible cable 4 Sqmm | 20 |
| 8 | MC-4 Connectors | MC4 Compatible connectors (Pair) (Male Connectors & Female Connectors) |
4 |
| 9 | Lighting Arrestor | Conventional type LA 1.1m high LA HDG (minimum 80-micron) | 1 |
| 10 | Earthing kit (Earth Rod) | EarthRod L-1.5M D-14mm Cu min 250 micron | 3 |
| 11 | Earthing kit (Earth Chemical) | 10kg Earthing chemical fill | 1 |
| 12 | Earthing kit (Earth Chamber) | 245x245x195mm PPE chamber with cover | 3 |
| 13 | Earthing cables | 1C, 6 Sqmm Cu. Flexible cable, Green (For Modules-to-Modules Earthing) | 40 |
| 14 | Lug | 6 Sqmm Cu. Ring type lug | 28 |
| 15 | Nutbolts for M-M | SS 304 B nut M4x25 WH PW, SW for M2M | 30 |
| 16 | Cable Tie - Nylon | UV protected Cable Ties-250mm, UL Listed UV Resistant Nylon Cable Ties | 1 |
| 17 | Cable Tie - SS | UV protected Cable Ties-300mm, SS Cable Ties - Fire Proof, UV Resistant and Halogen Free Cable ties, SS304, Self Locking, highly chemical and corrosion resistant. | 1 |
| 18 | Insulation Tape | Insulation Tape (R-Y-B-N-G) | 1 |
| 19 | DC Cable Dressing Clips | DC Cable Dressing Clips (SS 316 W/O sharp edges DC cable) | 10 |
